Tourmix 04
- Suction flap
- Hammer mill
- Roller box
- Rotary piston blower
- Weighing mixer
- Residue emtpying
- Dust seperator
- Additional intake socket
- Discharge auger
- Swivelling auger
- Combination valve
- Component hopper
- Intake auger
- Blowout line
- Dosing tank for feed oil
- Suction flap
- Hammer mill
- Roller box
- Rotary piston blower
- Weighing mixer
- Residue emtpying
- Dust seperator
- Additional intake socket
- Discharge auger
- Swivelling auger
- Combination valve
- Component hopper
- Intake auger
- Blowout line
- Dosing tank for feed oil
The new First Class
The combination of performance, safety and low operating costs
Your advantages:
Improved performance
As a result of an optimization of the main components, a new 550 mm wide hammer mill, the new dust seperator, the powertrain and the pipe routing, again we were able to improve the performance significantly to it’s predecessor.
Low operating costs
A saving of up to 10 % compared with its predecessor, relative per ton of produced feed, is achieved by a correction of bottlenecks and improved cross-section throughout the piping, thus optimising the airflow from the rotary piston blower. The long service life of parts and the already low fuel consumption cares for low operation cost!
A large plus in safety
The new plant control has a large color display which informs the operator about the plant status and its current workload. Thus the operator is enabled to use optimum utilisation, without the risk of overloading. The software is multilingual which ensures that operators abroad, e.g. in Russia, have the same understanding of the plant as elsewhere, which contributes, too, to operational safety.
The graphical representation of the machinery and the intuitive operation ensure a better understanding of the plant, contributing considerably to safe operation.
The plant control
The software is multilingual which ensures that operators abroad, e.g. in Russia, have the same understanding of the plant as elsewhere, which contributes, too, to operational safety.
Continuous grinding. low operating cost, steel container, and hardly a trace of dust during discharge, all these remain the characteristic properties of the Buschhoff plants with their proven auger discharge.
Drive
Direct drive by truck engine up to 350kW or plant engine Mercedes Benz OM 471 LA 320kW
Blower
Aerzener rotary piston blower with pre-inlet cooling
Optional: hybrid blower D62H
Suction Line
Line diameter: 100mm
Max. line length: 40m
Mill
Hammer mill HF550 with 104 hard metal hammers
Screen basket with 2 sieves, 1,1m² screen area
Milling performance: up to 30t/h
Roller
Grain Roller GQ 64-2 with two powered wear- resistant corrugated rollers
Rolling performance: up to 20t/h
4-stage rolling gap adjustment, pneumatic
Weighing Mixer
Content: 7,8m³ – 13,6m³ (by type)
Mixings: up from 500kg
Mixing accuracyt 1 : 100.000
Max. low pressure: -0,7bar
Max. high pressure: 0,9/1,2bar (hybrid blower)
New large dust separator
Discharge
Line diameter: 100mm
Max. line length: 40m
Discharge performance up to 50t/h
Continuous op: as standard with weight logging
Control
TOURMIX Control
TFT colour display in the control stand
Chassis
Min 18t overall weight
Min 3.900mm wheelbase

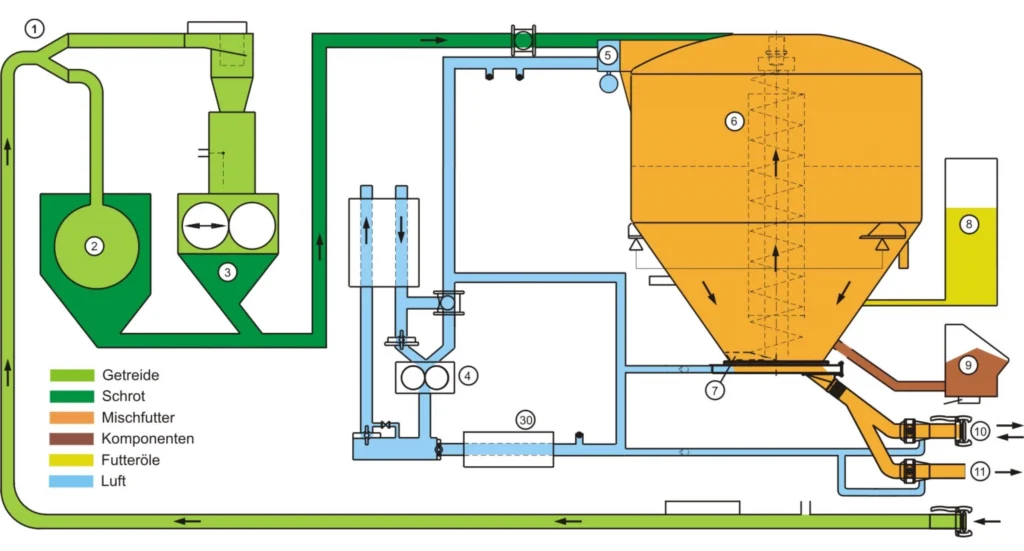

Tourmix SD
- Suction flap
- Hammer mill
- Roller box
- Rotary piston blower
- Filter unit
- Suction-pressure-mixer
- Rotational sucker
- Feed oil tank
- Component hopper
- Blowout line
- Discharge arm
Designed for your success
The TOURMIX 02-SD excels:
- Optimum performance combined with easy handling
- User-friendly residue emptying of the complete plant
- Minimum maintenance cost through few wear parts
- Coarse meal, rolled goods and additional feed components are directly (without any augers) sucked into the mixer. Afterwards the mixer is emptied pneumatically.
- By means of the innovative rotational sucker, feed residue is automatically removed from the mixer bottom. At the same time, pressure inside the mixer is gradually relieved. Dabei wird gleichzeitig der Überdruck im Mischer allmählich abgebaut.
Suction pressure mixer
The capacity of the weighing mixer is 10.800 litres, enabling a filling with heavy bruised grain of up to 7 tons. The solid stainless steel container is designed according to pressure machinery guideline 97/23EG and certificated by the German TÜV inspection authority.
The continuous flow of ground or rolled goods directly into the mixing auger and the innovative distribution head above the mixing auger assure a homogenous mixture for a complete mixer filling.
Dust seperator
The integrated compact dust separator supports a high suction performance.
Conveying pipes
Short distances and fully-opening ball valves assure low resistance and a high conveying performance.
The pneumatic emptying works without any problems due to the electronic load control. The discharge performance is up to 60 t/h.
The suction and pressure pipes are arranged on the left-hand side of the vehicle. The operating position and the hose stowage on the right-hand side remain unobstructed.
Operation and maintenance
All operating controls are arranged in a logical and ergonomical way and are, therefore, easy to use. All components of the machinery are easily accessible for maintenance.
- Suction flap
- Hammer mill
- Roller box
- Rotary piston blower
- Filter unit
- Suction-pressure-mixer
- Rotational sucker
- Feed oil tank
- Component hopper
- Blowout line
- Discharge arm
- Suction flap
- Hammer mill
- Roller box
- Rotary piston blower
- Filter unit
- Suction-pressure-mixer
- Rotational sucker
- Feed oil tank
- Component hopper
- Blowout line
- Discharge arm
Drive
Direct drive by truck engine up to 350kW or plant engine Mercedes Benz OM 471 LA 320kW
Blower
Aerzener Delta Hybrid blower, pressure up to 1,2 bar
Suction Line
Line diameter: 100mm
Max. line length: 40m
Mill
Hammer mill HF550 with 104 hard metal hammers
Screen basket with 2 sieves, 1,1m² screen area
Milling performance: up to 30t/h
Roller
Grain Roller GQ 64-2 with two powered wear- resistant corrugated rollers
Rolling performance: up to 20t/h
4-stage rolling gap adjustment, pneumatic
Weighing Mixer
Content: 7,8m³ – 13,6m³ (by type)
Mixings: up from 500kg
Mixing accuracyt 1 : 100.000
Max. low pressure: -0,7bar
Max. high pressure: 1,2bar (hybrid blower)
New large dust separator
Discharge
Line diameter: 100mm
Max. line length: 40m
Discharge performance up to 60t/h
Control
TOURMIX Control
TFT colour display in the control stand
Chassis
Min 18t overall weight
Min 3.900mm wheelbase
Tourmix 04 DUO
If ONE isn’t enough
What´s the plan today – your customer demands a a 12 t large mixture, to different feed mixtures, or a 500 kg special mixture?
Everything is possible with the new TOURMIX DUO.
Because it is equipped with two mixing containers, two weighers, two filter units, and a large hybrid blower with a variable drive. two completely different mixtures can be simultaneously produced and discharged.
The TOURMIX Control stands for a notable advance regarding mobile milling and mixing plants: You only state what the plant should do, and the computer calls up the necessary instructions.
Your advantages
- Significantly better milling performance enables a more effective use of machinery
- Lower labour costs per ton of processed feed
- Halving of driving and manoeuvring time
- Constant mixing accuracy of 1:100.000 for all sizes of mixture
- Small mixtures from 500 kg up are possibe without loss through residue inside the plant
- Low learning curve for new staff because of the simple, self-explanatory operation via the graphical user interface
- Large, wide opening cover panels (zinc- and powder-coated) provide excellent access to all parts of the plant
- Stainless steel mixers without inner struts provide high mixing quality and optimum emptying of residue
Combination mode
Both mixers are simultaneously and evenly loaded by a weight-operated oscillating flap, then the large mixing is discharged at one go. Two discharge lines provide double discharging performance.
Parallel mode
Processing of two different feed mixtures, with only once driving to and loading from the respective feed component storage. Simultaneous discharging of both mixtures to two feed silos.
Supply mode
Loading one mixer with a feed component or a pre-mixing, then processing the complete mixture inside the second mixer with simultaneous weight-controlled loading via shuttle valve from the supply mixer. Perfect solution for places where feed components to be mixed are beyond the range of the suction lines.
- Suction flap
- Hammer mill
- Roller box
- Hybrid blower with variable drive
- Suction-pressure-mixer
- Shuttle valve
- Filter unit
- Suction line
- Suction line (directly)
- Component hopper
- Right discharge line
- Left discharge line
- Discharge arm
- Blowout channel
- Dosing tank for feed oil
Direct drive by truck engine up to 350kW or plant engine Mercedes Benz OM 471 LA 320kW
Blower
Aerzener rotary lobe compressor Delta Hybrid, pressures up to 1,2 bar
Suction Line
Line diameter: 100mm
Max. line length: 40m
Unique weight-controlled pendulum flap
Mill
Hammer mill HF550 with 104 hard metal hammers
Screen basket with 2 sieves, 1,1m² screen area
Milling performance: up to 35t/h
Roller
Grain Roller GQ 64-2 with two powered wear- resistant corrugated rollers
Rolling performance: up to 22t/h
4-stage rolling gap adjustment, pneumatic
Weighing Mixer
Inhalt: 2 x 6t (Behältervolumen jeweils 10.250l, auf Wunsch auch kleiner/niedriger)
Mixings: up from 500kg
Mixing accuracyt 1 : 100.000
Max. low pressure: -0,7bar
Max. high pressure: 1,2bar
2 filter units
Large cleaning hatch in mixer cone *)
Discharge
Line diameter: 100mm
Max. line length: 40m
Discharge performance up to 70t/h
Control
TOURMIX Control
TFT colour display in the control stand
Chassis
32t overall weight
Four axle truck, 3 axles steered
Three axle truck option on request
